From OpenAPI and Swagger

An OpenAPI or Swagger document becomes one REST API in the project you choose. Every operation becomes a ready-to-send request, filled in with examples from the document:

  • tags become folders;
  • servers become base URLs;
  • security schemes become auth you can apply with one click.

Webhooks and callbacks come across too, as webhook items in the project’s Webhooks collection. Responses, links and vendor extensions do not. The summary lists what was skipped and why.

To run the import, see OpenAPI (and Swagger) in the importers guide. It reads OpenAPI 3.0, 3.1 and 3.2, and Swagger 1.x and 2.0, in YAML or JSON, by URL, file or paste.

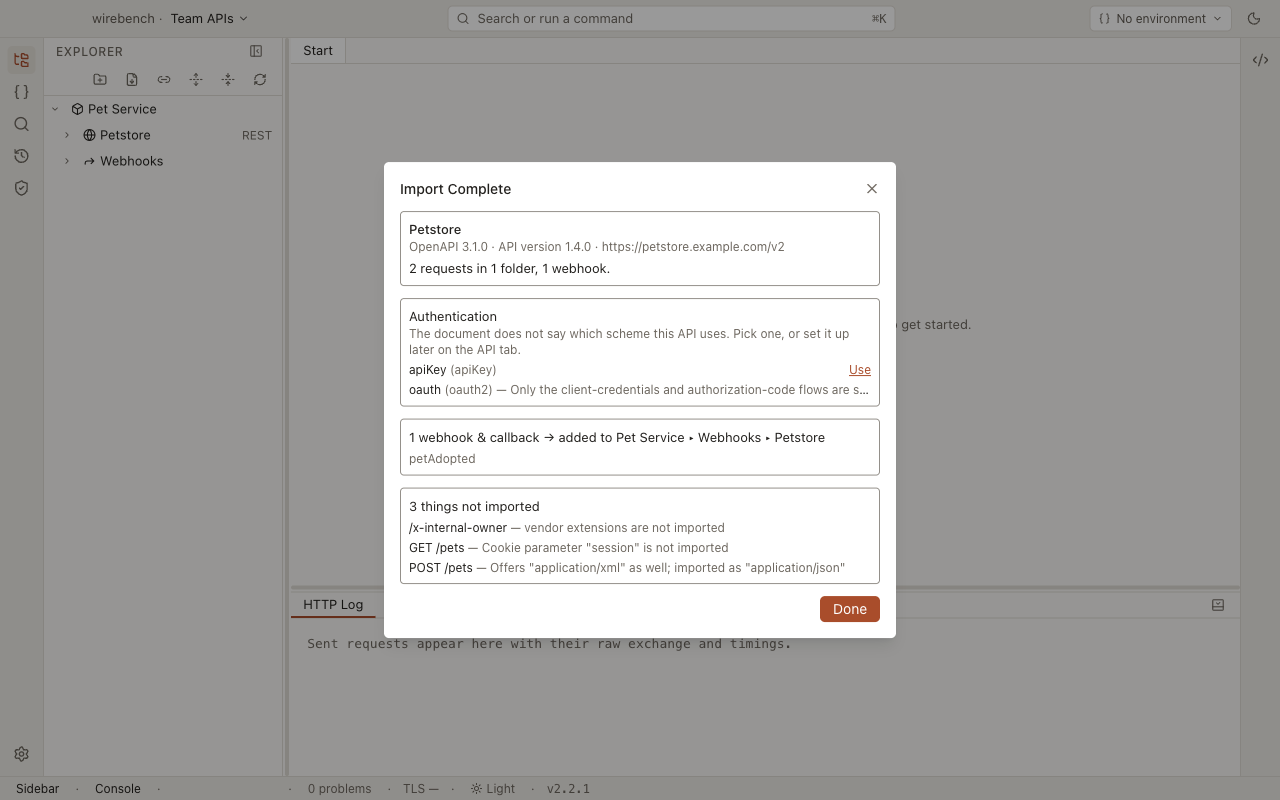

The import summary for an OpenAPI document: two requests in one folder, two security schemes to choose from, one webhook added to the Webhooks collection, and three things not imported

What carries over

Section titled “What carries over”
In the document In Wirebench More
info.title and info.description The API’s name and description REST
servers, with variables filled from their defaults The API’s Base URL (the first server). The others are offered as suggestions in that field Create an API
Swagger 2 host, basePath and schemes The same, built into server URLs. With no scheme, https
An operation’s first tag A folder, with the tag’s description. An untagged operation goes in a Deprecated folder if it is deprecated, else in one named after the first path segment
An operation A request named after its summary, else its operationId, else METHOD /path. A deprecated operation’s description starts with Deprecated.
Path parameters Rows in the Path parameters table, turned on Path and query parameters
Query parameters Rows in the Params table. Required ones are on; optional ones are there but off
Header parameters Rows in the Headers table, all off, so the import never changes what is sent until you turn one on
Parameter examples Values: the example, else the first named example, else a value made from the schema
A request body One body, chosen in this order: JSON, XML, form, multipart, anything else. Required fields are on Request body
Swagger 2 body and formData parameters A raw body, or a form or multipart body
Global security with a single requirement The API’s auth, applied for you Authentication
An operation whose security differs from the global one That request’s own auth. security: [] becomes None

Security schemes

Section titled “Security schemes”

The summary lists the schemes, each with a Use button, when the global security lists more than one requirement or none at all; you choose one. Either way, the document holds no credential to import, so you fill it in on the API tab.

Scheme Wirebench auth
HTTP basic Basic
HTTP bearer Bearer
apiKey in a header or the query API key, with its name and location
oauth2 with a client-credentials flow OAuth 2, client credentials: token URL and scopes
oauth2 with an authorization-code flow OAuth 2, authorization code with PKCE on: authorization URL, token URL and scopes

When a scheme offers both OAuth 2 flows, the import uses client credentials. The client ID is left empty for you to fill in.

What does not carry over

Section titled “What does not carry over”
In the document What happens What to do
Credentials of any kind Nothing to import: a document doesn’t hold them Fill them in on the API’s Auth tab
HTTP schemes other than basic and bearer (digest…) Listed in the summary with the reason; no Use button Send the header yourself
apiKey in a cookie Not an Auth setting: each request sent under it gets a switched-off Cookie header with the key’s name and a blank value Fill in the value and switch the header on
OAuth 2 flows that are only implicit or password Listed in the summary with the reason Use a client-credentials or authorization-code setup, or a Bearer token
openIdConnect and mutualTLS schemes Listed in the summary with the reason For mutual TLS, see Client certificates
Cookie parameters Joined into one switched-off Cookie header per request, like other header parameters Switch the header on
Accept, Content-Type, Authorization and Cookie header parameters Skipped, and listed: the request sets these itself Nothing
A second media type for a body Skipped, and listed with the one that was chosen Change the body on the Body tab
webhooks (OpenAPI 3.1+) and operation callbacks Imported as webhook items in the project’s Webhooks collection, in a folder named after the API, when Import webhooks & callbacks is ticked (the default) Point them at your own receiver. See Sending webhooks
webhooks in an OpenAPI 3.0 document Skipped, and listed: webhooks need 3.1 Nothing
Links Skipped, and listed Nothing
Vendor extensions (x-…) Skipped, and listed Nothing
A $ref that can’t be resolved Skipped, and listed Fix the reference in the document and import again
Responses and response examples Not imported, and not listed Send the request to see the live response
Servers set on a single path or operation Not imported, and not listed Set the request’s URL to the full address, or use an environment
Server variables with a list of allowed values Filled from their default only. The import makes no environments from the list Add an environment per value
Tags after an operation’s first Not used: a request lives in one folder Nothing

After importing

Section titled “After importing”

  1. Read things not imported in the summary.

  2. If the import didn’t apply a security scheme, choose Use on the one the API uses. Then fill in its credentials on the API tab. See Secrets.

  3. Turn on the header and optional query rows you need, on each request.

  4. Send one request to confirm the base URL and auth.
