From a legacy SOAP project

A legacy SOAP project file is the single XML file in which an older desktop SOAP workbench saves a project. Importing it adds four things to a Wirebench project:

• the file’s SOAP interfaces;
• its saved requests;
• its properties;
• its environments.

Credentials, assertions, test suites and mocks do not come across. The report lists every one of them against the request or interface it belonged to.

To run the import, see Legacy SOAP project in the importers guide. It reads the file from disk only; a pasted copy is refused.

What carries over

In the project file	In Wirebench	More
A SOAP interface	An interface, built from the WSDL copy the file carries. Without a copy, the WSDL is fetched over HTTP(S) and the report notes it	SOAP and WSDL
The interface’s endpoints	The interface’s endpoints
Operations	Operations, in the definition’s order
A saved request	A request with the envelope exactly as saved, and its SOAP version, SOAPAction and endpoint	Send a request
A request’s character encoding and timeout	The request’s encoding and timeoutMs properties
WS-Addressing turned on for a request	WS-Addressing turned on for that request
A request’s username, with a domain or NTLM set	NTLM auth with the username and domain	Authentication
A request’s username otherwise	Basic auth with the username. Preemptive stays preemptive
Project properties	Project properties with the same names and values	Environments and properties
Environments, with their properties and endpoint overrides	Environments with the same properties and endpoint overrides	Endpoint overrides
${#Project#name} where an imported environment defines name	Rewritten to ${name}, so it follows the active environment	Property syntax
${#Project#name}, ${#Global#name}, ${#System#name}, ${#Env#name} otherwise	Kept as written. These scopes exist in Wirebench too	Property syntax
Scripts, on any element	Saved as they are under imported-scripts/ in the project folder, and listed in the report. They are never run

A request whose operation is no longer in the WSDL is kept, marked as orphaned, and noted in the report.

What does not carry over

In the project file	What happens	What to do
A saved password	Not imported. The report lists each request that had one	Enter it in the request’s Auth inspector. Wirebench stores it encrypted outside the project
SPNEGO/Kerberos, OAuth 2.0 or OAuth 1.0 auth on a request	Not imported. The report lists the request	Set the request’s auth again
OAuth 2.0 and OAuth 1.0 profiles	Not imported. Reported once	Set up OAuth 2 on the endpoint or interface. See OAuth 2
Assertions on a request	Not imported. The report counts them per request	Recreate the checks you need
Attachments on a request	Not imported. The report counts them per request	Add the files again. See Attach files
A request’s WS-Security configuration, and the project’s WS-Security configurations and keystores	Not imported. Reported by name	Set them up again. See WS-Security
Test suites and test cases	Not imported. Reported with the number of test cases	Rebuild the flows you need from the imported requests
Mock services	Not imported. Reported	Not available in Wirebench
REST and other non-SOAP services	Not imported. Reported	Import the API from its OpenAPI document instead. See From OpenAPI and Swagger
Database connections and requirements	Not imported. Reported	Not available in Wirebench
Other per-request settings, such as custom HTTP headers	Not read, and not reported	Add them in the request’s Headers inspector
A request whose saved body is empty or can’t be decompressed	Skipped. Reported	Recreate it from the operation
An interface whose WSDL the file doesn’t hold, at a local path	Not imported, because Wirebench never reads a local path named in the file. Reported	Import that WSDL on its own
${#TestCase#name}, ${#TestSuite#name} and other scopes Wirebench doesn’t have	Kept as written, but they resolve to nothing. The import does not report them; sending the request does	Change them to ${name}, and define name as a property
An encrypted project file	Refused	Open it in the tool that wrote it, save it without a password, and import that copy

Environments and ${#Project#…}

A ${#Project#name} reference is rewritten to ${name} during import when at least one imported environment defines name, so the request follows whichever environment is active, the same as it did before the import. References you type after importing are not changed; write ${name} (or ${#Env#name}) yourself if you want them to follow the environment too.

Secrets kept in properties

Property values are imported as plain text, and the report does not flag them. If a property held a password or a token, that value is now in the project files. Move it to a secret before you share the project. See Secrets.

After importing

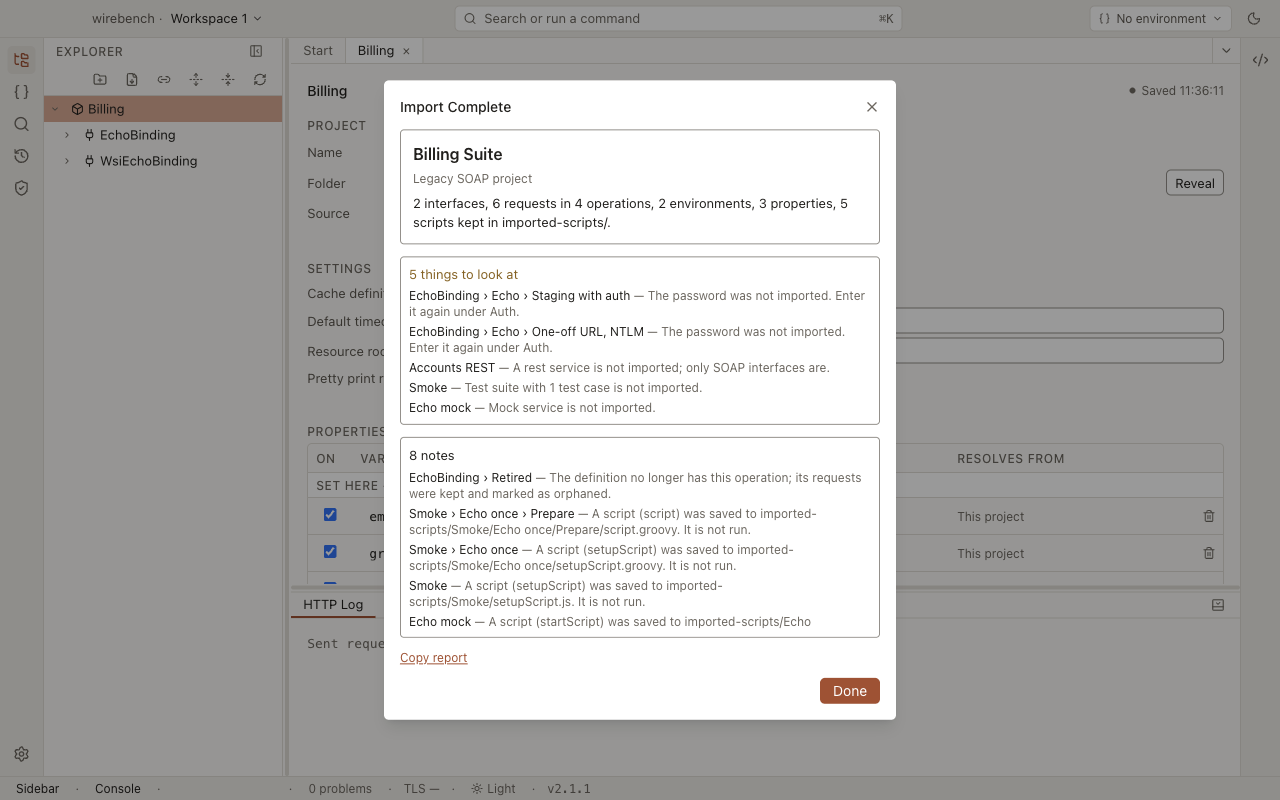

1. Read the report, or choose Copy report to keep it as a checklist.

2. Enter the passwords it lists, in each request’s Auth inspector.

3. Check the project and environment properties for credentials, and move any you find to secrets.

4. Switch to one of the imported environments and send one request, to confirm that the endpoint and properties resolve.
